Technical Specifications:-
Mechanical Properties:-

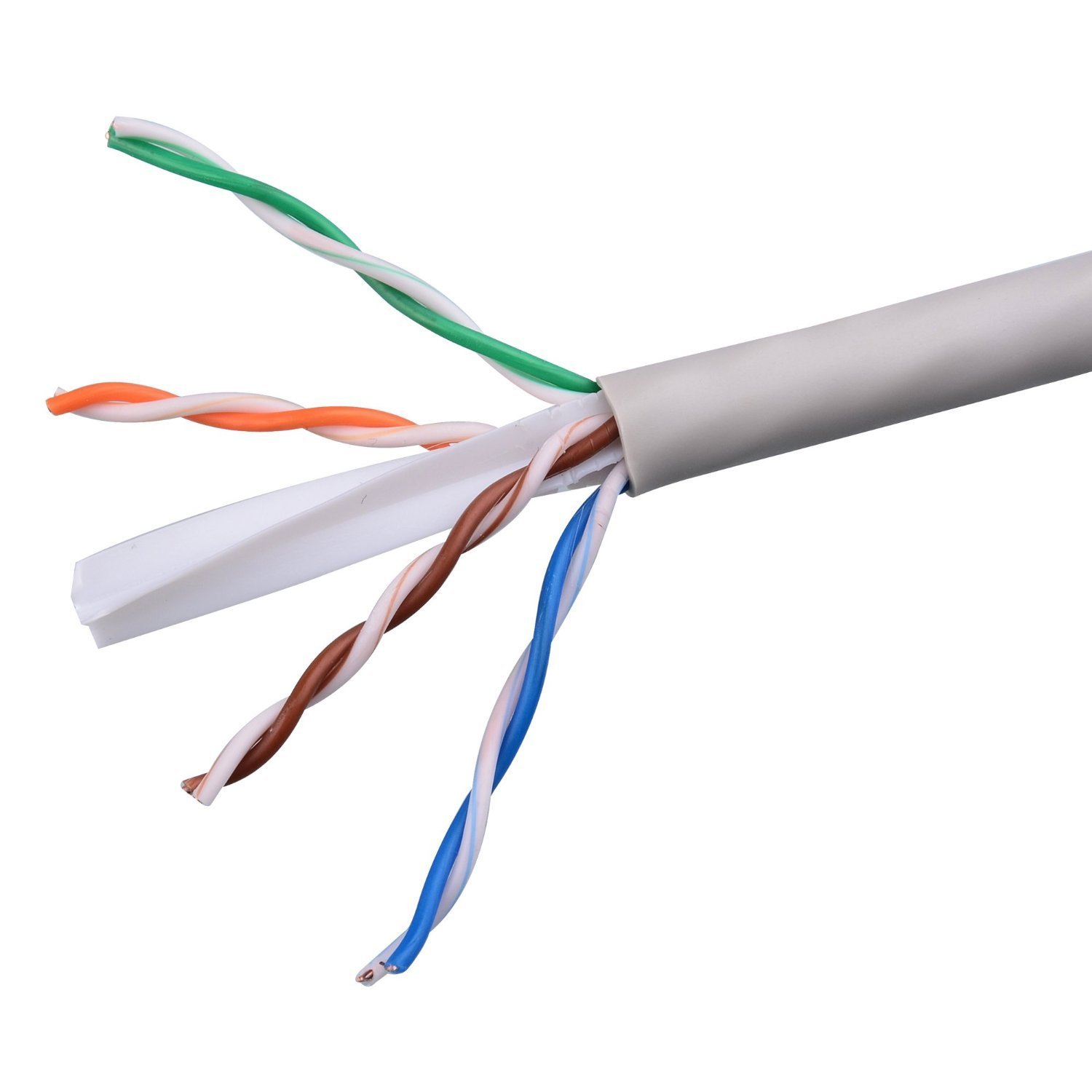

Conductor: 23AWG Solid Bare Cable
CENTRAL ELEMENT: PE Cross Separator
Insulation: High-Density Polyethylene Solid
Pairs: 4 Pairs Twisted Together
Cable Diameter : 5.9+/-0.01MM
Ripcord: Yes
JACKET: FRPVC/LSZH sheath
JACKET Color: Light Grey
Bending Radius : < 4X Cable Diameter at -20°C +/- 1°C
Pulling Force: 25.35 LBS
Operating Temperature : (-20°C to +70°C)
Range
Installation Temperature : (-20°C to +70°C)
Range
Electrical Properties:-
Conductor Resistance: 9.38OHM
(For 100M)
Mutual Capacitance: 5.6NF
(For 100M)
Resistance Unbalance (%) : Max 5
Capacitance Unbalance: 330PF
(For 100M)
Delay Skew (For 100M) : 45NS
Propagation Delay Skew : 536BS
(For 100M)
Current Rating : MAX 1.5A
Operating Voltage: 72V
Dielectric strength : 1000 V RMS
Color Code:-
Pair Number: Color
1 – 2: White-Orange Stripe and Orange
3 – 6: White-Green Stripe and Green
4 – 5: White-Blue Stripe and Blue
7 – 8: White-Brown Stripe and Brown
Flame Rating: CM Rated
Packing: Easy Pull Boxes/Reels of 305m Length
Standards: UL Listed
ETL Verified to ANSI/TIA-568-C.2
ISO/IEC 11801
